NetApp E2800
Entry-level hybrid flash array for small enterprises and remote offices
Click here to jump to more pricing!
Overview:
Many small and medium-sized organizations are seeking new ways to manage growing data requirements with minimal cost and maintenance. Consistent performance and cost-effective delivery are imperative. Yet managing data is increasingly more complex and costly, especially with limited resources, space, and power.
The NetApp E2800 is a hybrid flash storage system with a low acquisition cost and even lower cost of ownership. With the E2800, you can streamline your IT infrastructure and drive down costs. Pay-as-you-grow flexibility makes the E2800 an excellent solution for companies of all sizes that are facing rapid, unpredictable growth.
Unlike other storage systems that add file or virtualization layers in the I/O data path, E2800 hybrid arrays are purpose-built to optimize performance for mixed workloads. The E2800 improves IOPS and throughput to help you extract value from your data and take action faster. The intuitive, on-box graphical interface simplifies configuration and maintenance while providing enterprise-level storage capabilities to deliver consistent performance, data integrity, reliability, and security.
Key Benefits
- Affordable Performance
Leverage flash in an affordable hybrid system for a wide range of mixed workloads. - Cloud Connectivity
Enable flexible and cost-effective backup and recovery to the cloud from a NetApp E2800 Series system with NetApp SANtricity Cloud Connector. - Proven Simplicity
A modern, on-box, browser-based GUI enables you to get access to your data in under 10 minutes, with simple, flexible administration. - Worry-Free Reliability
The NetApp E2800 is an entry-level product with enterprise-level redundancy, automated management, and field-proven availability
Why NetApp E-Series arrays?
Over one million installations and counting
NetApp E-Series arrays are the go-to system for so many because of the simplicity and reliability they deliver. From mid-sized businesses driving data-intensive applications like analytics, video surveillance, and disk-based backup, to small enterprises and remote offices needing mixed-workload performance for their dedicated apps.
In addition to solid performance, E-Series enables flexible and cost-effective backup and recovery to the cloud, and features a modern, browser-based GUI that enables simple, flexible administration and rapid data access.
Features:
Affordable Performance
The E2800 storage system optimizes price and performance to support any workload. Higher performance with solid-state drives (SSDs) enables the E2800 to maximize storage density, requiring fewer disks to meet your performance objectives. The E2800 delivers over 300K sustained IOPS and supports a broad range of high-speed host interfaces, including 32Gb Fibre Channel (FC), 25Gb iSCSI, and 12Gb SAS, to protect investment in storage networks.
The SSD cache feature provides intelligent analytics-based caching capabilities for readintensive workloads. Hot data is cached by using higher-performance, lower-latency SSDs in the drive shelves, with the full dataset being stored on HDDs. You don’t need to set up complicated policies to define the trigger for data movement between tiers. You can simply set it and forget it. The SSD cache is expandable to up to 5TB per storage system.
Proven Simplicity
The E2800 modular design and simple management tools make it easy to scale without adding management complexity. The on-box, browser-based SANtricity System Manager GUI enables you to streamline deployment and start working with your data in under 10 minutes.
Simplicity does not preclude flexibility. NetApp SANtricity software offers a combination of comprehensive features and ease of use. You can use SANtricity System Manager to walk you through workload-appropriate provisioning, or you can provision workloads on your own. NetApp Dynamic Disk Pools (DDP) technology dramatically simplifies RAID management by distributing data, parity, and spare capacity across a pool of drives, with intelligent defaults, minimal decision making, and no stranded capacity after deletions. A single E2800 system can support both DDP and traditional RAID volumes if your workloads require it.
The SANtricity Cloud Connector software solution, part of the NetApp Data Fabric, provides a cost-effective basic backup approach with backup and recovery to the cloud from E-Series systems.
Advanced Data Protection
NetApp SANtricity DDP technology enables storage administrators to simplify RAID management, improve data protection, and maintain predictable performance under all conditions. DDP technology evenly distributes data, protection information, and spare capacity across the entire pool of drives, simplifying setup and maximizing use. This innovative technology minimizes the performance impact of a drive failure and can return the system to optimal condition up to 8x faster than traditional RAID. With shorter rebuild times and patented technology to prioritize reconstruction, DDP capabilities significantly reduce exposure to multiple disk failures, offering a level of data protection that simply can’t be achieved with traditional RAID.
With SANtricity software, all management tasks can be performed while the storage remains online with complete read/write data access. Storage administrators can make configuration changes, conduct maintenance, or expand the storage capacity without disrupting I/O to attached hosts. SANtricity software online capabilities include:
- DDP drive allows additions and reductions.
- Dynamic volume expansion enables administrators to increase the capacity of an existing volume.
- Dynamic segment size migration enables administrators to change the segment size of a given volume.
- Dynamic RAID-level migration changes the RAID level of a RAID group on the existing drives without requiring the relocation of data. Supported RAID levels are 0, 1, 5, 6, and 10.
- All firmware updates (controller, drive, IOM) are nondisruptive, with no interruption to data access.
To protect against data loss and downtime events, both locally and over long distances, the E2800 offers advanced data protection that is common to enterprise storage. These features include:
- NetApp Snapshot technology. Create and restore pointin-time copies of datasets in less than a second to protect against accidental data loss on the local array.
- Volume copy. Create a complete physical copy (clone) of a volume for applications that require a full point-in-time copy of production data.
- Asynchronous mirroring. Volume replication over FC or IP long distance to remote site keeps your business operations running no matter what happens.
- Synchronous mirroring. Continuous volume replication is enabled over FC at campus distances.
- Cloud backup. SANtricity Cloud Connector enables flexible and cost-effective backup and recovery from on-premises storage to the cloud.
With the E2800 array, you can easily replicate data to another E2800 or other NetApp E-Series system. With this capability, you can create a high-speed, low-latency recovery system that runs at the same speed as your production operations. You can also choose to fail over to a consolidated E-Series system with more cost-effective disk storage. This flexibility in design allows you to choose the profile of performance and cost to meet your business requirements.
High Availability and Enterprise Reliability
The E2800 is based on a field-proven architecture that delivers high reliability and 99.9999% availability when NetApp best practices are followed. The E2800 offers a secure, reliable foundation for your valuable data.
Designed to have no single point of failure, the E2800 has fully redundant I/O paths with automated failover and extensive diagnostic capabilities that alert on and actively help resolve failures. SANtricity Data Assurance (based on the T10 PI industry standard) validates data integrity and protects against silent data corruption. The E2800 also offers data management features such as Snapshot copies, volume copy, and mirroring. All management tasks are performed while the storage remains online with complete read/write data access. Storage administrators can make configuration changes and conduct maintenance without disrupting application I/O.
One of the most critical aspects of an enterprise solution is the ability to detect and resolve issues. In this area, the E2800 all-flash array offers significant depth of capabilities, including:
- Extensive capturing of diagnostic data provides comprehensive fault isolation and simplifies analysis of unanticipated events.
- Background monitoring proactively scans media and tracks drive health against defined thresholds.
- Integrated Recovery Guru diagnoses problems and provides the applicable procedure to use for recovery.
- With DDP technology and RAID 6, a drive rebuild continues even when an unreadable sector or second failure is encountered.
- NetApp Active IQ telemetry is built into the E2800, so you can take advantage of Active IQ hybrid cloud services to optimize your environment.
Secure Data, Secure Management
NetApp SANtricity drive encryption* combines local key management with drive-level encryption for comprehensive security for data at rest with no impact to performance. Because all drives eventually leave the data center through redeployment, retirement, or service, it’s reassuring to know that your sensitive data isn’t leaving with them. Customers can choose to manage the drive authentication keys natively for a simple lowest-cost solution or use a KMIP-compliant external key manager for centralized administration.
Management access to the E2800 is protected with role-based access control, LDAP/Active Directory integration, and digital certificate management. The security administrator manages user privileges and password requirements. The exportable audit log gives visibility into management actions taken on the array. All management communication is over HTTPS. In addition, SAML support is available to optionally enable multifactor authentication for further protection against threats.
Modular Flexibility
With the E2800 flexible configuration options, you build just one architecture to support a multitiered data model. This feature is particularly suited for intensive analytics applications such as Splunk, which uses hot, warm, cold, and frozen tiers.
E2800 systems offer multiple form factors and drive technology options to meet your requirements:
- The ultradense 60-drive system shelf supports up to 720TB in just 4U and is optimal for environments with vast amounts of data and limited floor space, with either 2.5-inch or 3.5-inch drives.
- The 24-drive system shelf combines low power consumption and exceptional performance density with its highperformance 2.5-inch drives.
- The 12-drive shelf is a great fit for cost-conscious organizations that need to provide both performance and capacity, with either 2.5-inch SSDs or 3.5-inch drives.
Maximum Storage Density
Today’s storage must keep up with continuous growth and must meet the most demanding capacity requirements. The E2800 is designed for capacity-intensive environments that also require efficient data center space, power, and cooling utilization. The system’s ultradense, 60-drive, 4U disk shelf provides industryleading performance and space efficiency to reduce rack space by up to 60%. Its high-efficiency power supplies can lower power and cooling use by up to 40%.
DevOps-Ready System
To enable the automation and agility that are required in the DevOps-based IT revolution, the E2800 supports a full-featured on-box REST API, SANtricity Web Services. Ansible modules are available for open-source orchestration and configuration management. And for easy integration and automation in traditional IT and Windows ecosystems, the E2800 also supports Windows PowerShell and SMI-S 1.6.
ENERGY STAR Certification
All E-Series systems use “85% PLUS” power supplies, exceeding the EPA ENERGY STAR requirement of 80% efficiency.
ASHRAE Compliance
All E-Series systems meet the certification requirements of ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers), a global society that advances human well being through sustainable technology built for the environment:
- E2812, E2824, DE212C, and DE224C are ASHRAE A4 compliant
- E2860 and DE460C are ASHRAE A3 compliant
* Hardware and software for at-rest data encryption are not available in certain countries, including Russia, Belarus, Kazakhstan, and other Eurasian Customs Union countries
Primary Use Cases:
From big data analytics, video surveillance, and high performance computing (HPC), to backup and recovery, E-Series is ready to earn your trust. And applause.
Big data analytics
Achieve consistent high performance, access your data more frequently and scale with compute and storage decoupled.
Rapidly gaining insights from data is crucial for today's businesses, Leaders and analytics teams are under pressure to harness their varied datasets. Structured or unstructured, stored in the data center or cloud, generated by humans or machines, data is your basis for competitive advantage.
NetApp modern data analytics solutions enable efficient data collection—no matter where your data lives. Our solutions remove bottlenecks, accelerate AI/ML workloads, and simplify cloud integrations.
Video surveillance
Meet the challenges of increased surveillance-data throughput, retention, and retrieval.
Driven by our rock-solid NetApp E-Series storage system, NetApp Video Surveillance Storage (VSS) solutions help you easily solve the challenges of increased surveillance-data throughput, retention, and retrieval.
No matter what industry you’re in, losing access to your content is unacceptable, which is why VSS solutions are built on a fault-tolerant design to deliver greater than 99.999% availability.
And VSS is ready to grow with your needs. Not only did we design the solutions to scale transparently, all components are hot-swappable, so you can upgrade them as necessary without disruption.
High Performance Computing (HPC)
Optimize performance for petabyte-scale, data-intensive applications.
Talk about keeping pace with extreme AI workloads—NetApp puts the “P” in HPC. Our HPC solutions can deliver up to 2 million random read IOPS and 24GBps sustained write bandwidth per scalable building block.
Scale seamlessly from terabytes to petabytes by adding capacity in any increment—one or multiple drives at a time. And that's with a fault-tolerant design proven to deliver greater than 99.9999% availability. Hello around-the-clock reliability and AI flow state.
Backup & recovery
Get cost-effective, reliable, fast storage for backing up heterogeneous environments.
With NetApp, data protection isn't simply an add-on to your infrastructure. Data protection is a key foundation to how NetApp manages data. Our solutions address the full range of cybersecurity threats to help make sure data protection is done right.
Specifications:

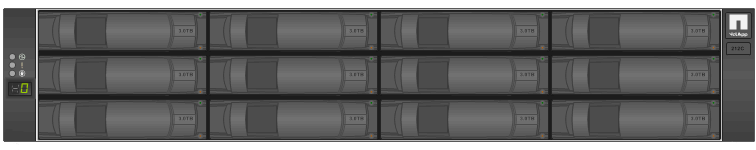

Front View without Bezel (2U12)

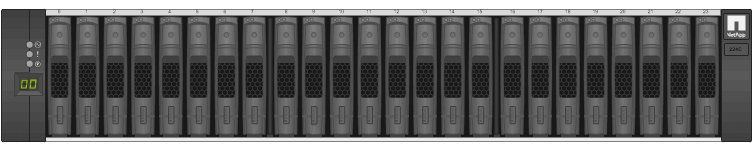

Front View without Bezel (2U24)

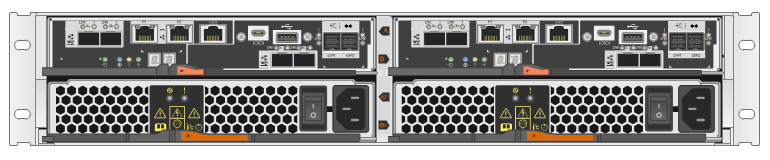

Rear View
| E2800 Technical Specifications | |
|---|---|
| Rack sizes | 2U12 (2 rack units; 12 drives) 2U24 (2 rack units; 24 drives) |
| Drives | Supports the following drive types:
|
| Interfaces | Available with the following interfaces:
|
Software:
SANtricity
E-Series arrays are designed with NetApp SANtricity software to deliver multiple business advantages across a wide range of application workloads.
E-Series systems include SANtricity software for storage provisioning and other tasks.
SANtricity software consists of these management interfaces:
- System Manager — a web-based interface used for managing one controller in a storage array.
- Unified Manager — a web-based interface used for viewing and managing all storage arrays in your network.
- Web Services Proxy — a REST API used for viewing and managing all storage arrays in your network.
- Command line interface (CLI) — a software application for configuring and monitoring storage arrays.
SANtricity System Manager
System Manager is web-based management software embedded on each controller. To access the user interface, point a browser to the controller’s IP address. A setup wizard helps you get started with system configuration.
| System Manager offers a variety of management features, including: | |
|---|---|
| Performance | View up to 30 days of performance data, including I/O latency, IOPS, CPU utilization, and throughput. |
| Storage | Provision storage using pools or volume groups, and create application workloads. |
| Data protection | Perform backup and disaster recovery using snapshots, volume copy, and remote mirroring. |
| Hardware | Check component status and perform some functions related to those components, such as assigning hot spare drives. |
| Alerts | Notify administrators about important events occurring on the storage array. Alerts can be sent through email, SNMP traps, and syslog. |
| Access Management | Configure user authentication that requires users to log in to the system with assigned credentials. |
| System Settings | Configure other system performance features, such as SSD cache and autoload balancing. |
| Support | View diagnostic data, manage upgrades, and configure AutoSupport, which monitors the health of a storage array and sends automatic dispatches to technical support. |
SANtricity Unified Manager
Unified Manager is web-based software used for managing your entire domain. From a central view, you can see status for all newer E-Series and EF-Series arrays, such as the E2800, EF280, EF300, E5700, EF570, and EF600. You can also perform batch operations on selected storage arrays.
Unified Manager is installed on a management server along with the Web Services Proxy. To access Unified Manager, you open a browser and enter the URL pointing to the server where the Web Services Proxy is installed.
| Unified Manager offers a variety of management features, including: | |
|---|---|
| Discover storage arrays | Find and add the storage arrays you want to manage in your organization’s network. You can then view the status of all storage arrays from a single page. |
| Launch | Open an instance of System Manager to perform individual management operations on a particular storage array. |
| Import Settings | Perform a batch import from one storage array to multiple arrays, including settings for alerts, AutoSupport, and directory services. |
| Mirroring | Configure asynchronous or synchronous mirrored pairs between two storage arrays. |
| Manage Groups | Organize storage arrays into groups for easier management. |
| Upgrade Center | Configure user authentication that requires users to log in to the system with assigned credentials. |
| Certificates | Create certificate signing requests (CSRs), import certificates, and manage existing certificates for multiple storage arrays. |
| Access Management | Configure user authentication that requires users to log in to Unified Manager with assigned credentials. |
SANtricity Web Services Proxy
The Web Services Proxy is a RESTful API server that can manage hundreds of new and legacy E-Series arrays. The proxy is installed separately on a Windows or Linux server.
Web Services includes API documentation that allows you to directly interact with the REST API. To access the Web Services API documentation, you open a browser and enter the URL pointing to the server where the Web Services Proxy is installed.
Command line interface (CLI)
The command line interface (CLI) is a software application that provides a way to configure and monitor storage arrays. Using the CLI, you can run commands from an operating system prompt, such as the DOS C: prompt, a Linux operating system path, or a Solaris operating system path.
Documentation:
Download the NetApp E2800 Series Datasheet (.PDF)
